BPMN Explained: Purpose, Key Elements, and Best Practices for Effective Process Modelling

Every thriving business runs on well-defined and consistent processes. But in reality, many organizations struggle to maintain that consistency. Without readily available process documentation, teams often rely on memory or informal know-how, leading to variations in how work gets done. This lack of standardization makes it harder to deliver quality results, onboard new employees, or identify where improvements are needed.

That’s where BPMN (Business Process Model and Notation) steps in. BPMN is the universal language for process modelling that simplifies process understanding. It ensures that process knowledge is captured and shared in a standardized way, enabling frontline teams to execute daily operations confidently and consistently.

It also helps to lay the foundation for continuous improvement and automation, transforming how organizations work, collaborate, and grow.

In this blog, we’ll break down BPMN, why it matters, key elements, myths, and best practices, and show you how it fits perfectly within Business Process Management to drive operational excellence.

What is BPMN and Why It Matters in Modern Business

BPMN (Business Process Model and Notation) is a standardized graphical notation that helps organizations visualize their business processes. It provides a clear picture of what action needs to be taken to perform a task and where improvements can be made.

In simple words, it’s a universal language of process mapping, making it easy for everyone, from analysts and managers to every level of employee involved, to understand the flow of the process.

Why does it matter?

The real purpose of BPMN is to improve process visibility. By mapping every task, decision point, and handover visually, it gives organizations a clear picture of how work actually flows. This transparency helps identify inefficiencies, redundancies, and gaps that often go unnoticed in day-to-day operations.

With better visibility comes greater efficiency. Teams can spot bottlenecks faster, streamline repetitive tasks, and standardize how work is performed, leading to smoother collaboration, fewer errors, and quicker turnaround times.

By enhancing visibility and alignment, BPMN empowers organizations to make informed decisions, streamline operations.

Overall, it brings clarity, alignment, and transparency, enabling effective communication across your organization. It further ensures that everyone is on the same page and working collaboratively.

What is the Relationship Between BPMN and BPM?

BPMN is often mistaken as a standalone tool, but in reality, it’s an integral part of the broader Business Process Management (BPM) framework. It acts as the visual layer of business process management, helping you document, analyze, and optimize processes with clarity and precision.

Within BPM software, BPMN serves as a powerful modelling feature that lets you seamlessly map how work actually happens across your organization. Using standardized BPMN symbols, you can connect every task, decision point, and role — giving employees a clear visual roadmap of what to do next and how each activity contributes to the overall process.

For example, PRIME BPM has in-built BPMN, enabling you to:

• Map complex workflows in minutes using standardized symbols.
• Analyze performance metrics directly from your process models.
• Identify inefficiencies and simulate improvements before implementing changes.

In essence, BPMN gives BPM its structure and clarity. It ensures that every process in your organization is well documented, laying the foundation for continuous improvement to get measurable results.

What are the Key Elements and Symbols of BPMN?

BPMN may sound technical, but once you understand its basic elements, it’s remarkably intuitive. There are mainly four core elements to understand; the rest of the symbols are part of them.

Watch this video to get the overview of the key BPMN elements – The Core Symbols for Business Process Mapping

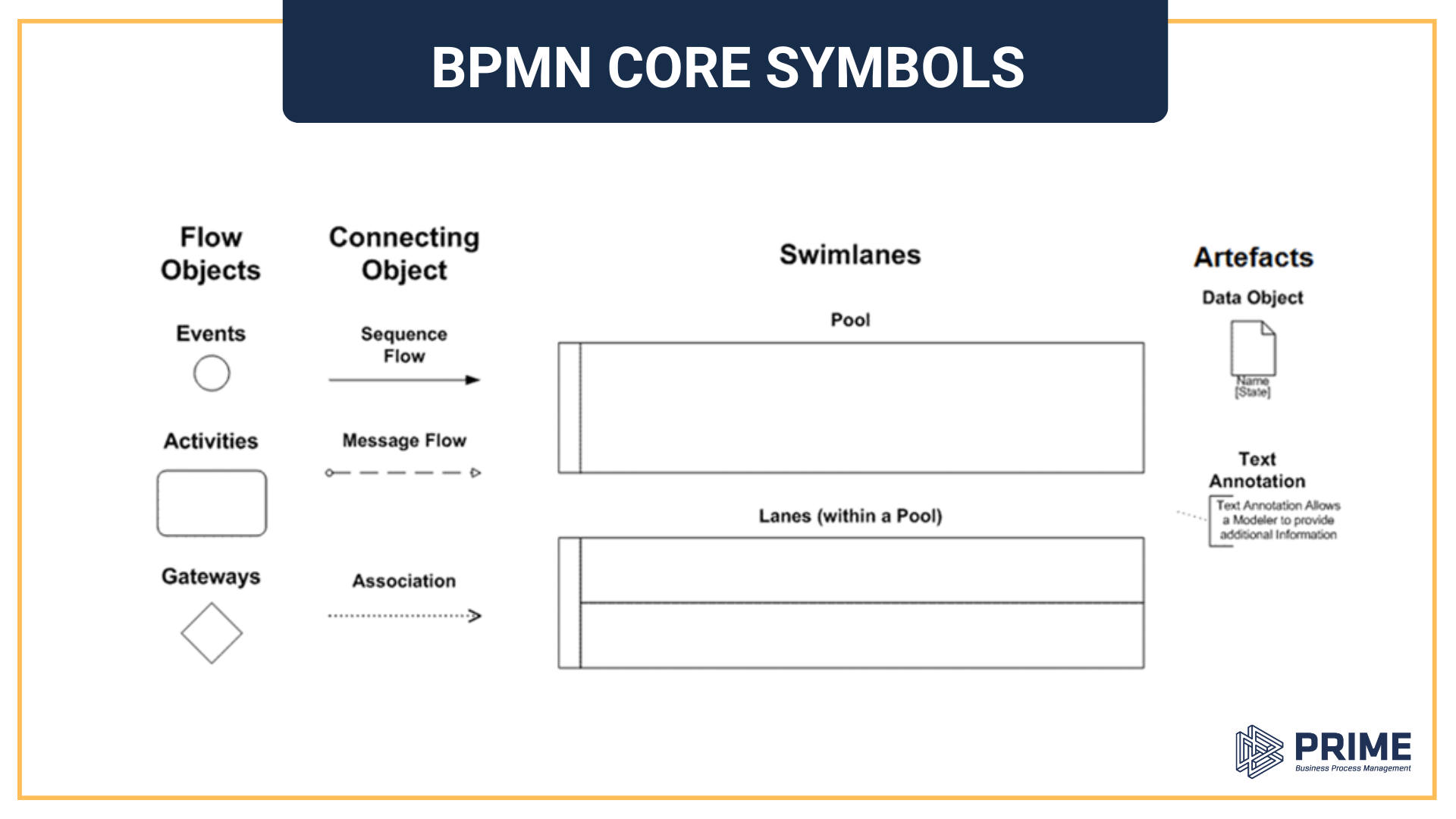

Here are the four core building blocks and BPMN symbols explained, you’ll use most often:

1. Flow Objects

These objects define the core activities and decision points in a process. The following are the symbols that come under flow objects:

Events

An event is something that ‘happens’ during the course of a process. It affects the flow of the process. It has three types, which are used based on when they affect the flow:

Start Event

Marks where a process begins. It’s the trigger that sets everything in motion, like receiving a customer order or submitting a form.

Intermediate Event

Represents something that happens along the way in a process, such as waiting for approval or sending an email before moving to the next step.

End Event

Shows where the process finishes. It’s the outcome, like delivering the product or closing a request.

Events Triggers – Events in BPMN are driven by triggers. These are specific actions or occurrences that cause the event to take place. These triggers can happen in different ways, depending on the type of event (as shown in the image below).

Let’s understand this better with a Message Event example:

Start Message Event – The process begins when a message is received from an external source.

Intermediate Message Event – A message is sent or received during the process, typically to or from an external party.

End Message Event – A message is sent when the process concludes, usually within the main pool (internal communication).

Below is an example of a process map that uses these symbols to visually represent how message events flow through a process.

– Activities

An ‘activity’ represents any work or action carried out within a process. In other words, it’s what the organization does to move a process forward.

There are different types of activities commonly used in a process model:

Task: A single unit of work performed within the process.

Sub-Process (Collapsible Task): A collection of tasks grouped together that can be expanded to show more detailed steps when needed.

To provide additional context, task markers can be added to show specific characteristics of an activity, such as:

Loop Task: Repeats the same activity until a certain condition is met.

Multiple Instance Task: Represents tasks that occur multiple times, either sequentially or in parallel.

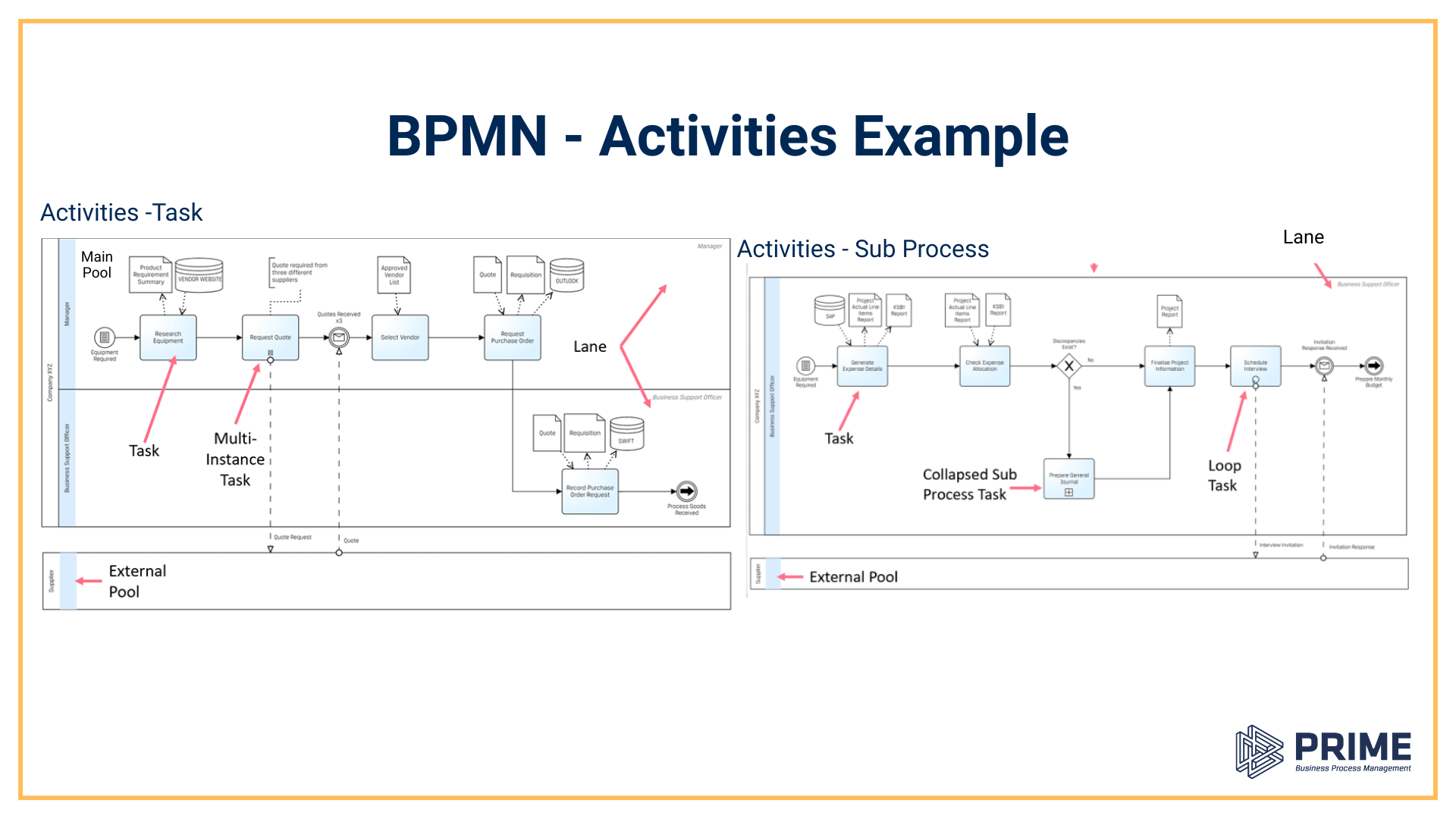

Below is an BPMN example of a process map that uses activity/task symbols.

– Gateways

In any business process, decisions are constantly being made. These decisions are based on which path to take, what to do next, or when to wait. Gateways in BPMN represent these decision points. They control how the flow of activities branches out, comes together, or runs in parallel.

Simply put, gateways help manage the flow of choices within a process. They determine whether steps happen one after another, at the same time, or based on certain conditions.

Here are the most common types of gateways you’ll come across:

Exclusive Gateway: It represents an “either/or” situation. Only one path moves forward based on a specific condition.

Inclusive Gateway: Here, one or more paths can proceed at the same time, depending on the rules set.

Parallel Gateway: This one allows multiple paths to happen simultaneously. It is great for tasks that can be done independently.

Complex Gateway: Used for advanced scenarios where several conditions must be evaluated to decide the next steps.

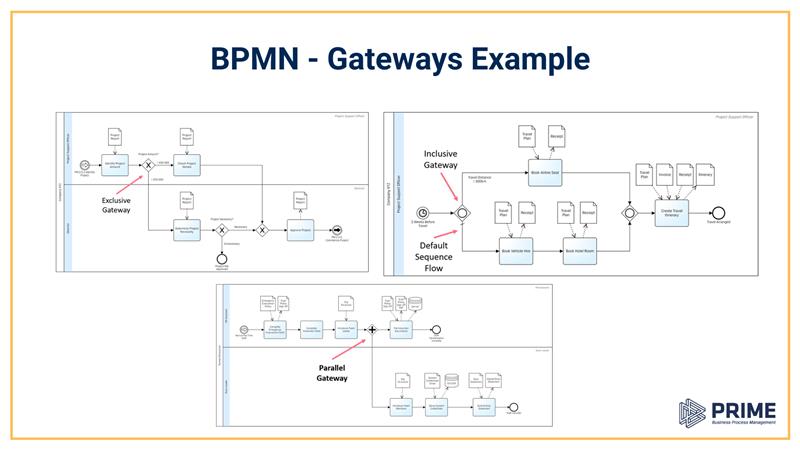

Let’s see BPMN examples of exclusive, inclusive, and parallel gateways in a process map for a better understanding.

2. Connecting Objects

Sequence Flow: This shows the path a process follows from one activity to the next. These are the arrows that guide your workflow step by step.

Message Flow: Used to illustrate the communication between two participants or entities. For example, when a customer sends a request to a service team, that interaction is represented through a message flow.

Association: Helps link extra details, such as data, notes, or documents, to specific activities or events, providing valuable context to understand what’s really happening behind each step.

3. Swimlanes

Swimlanes help organize who does what within a process, making it easy to see roles, responsibilities, and interactions at a glance.

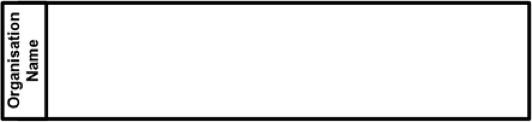

Pool: A pool represents a main participant or entity in the process — for example, a department, organization, or external party.

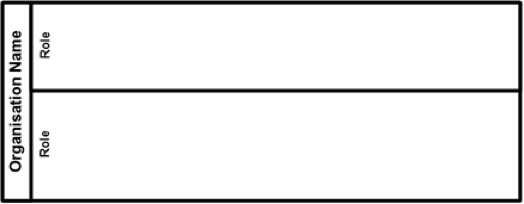

Lanes: Each pool can be divided into lanes, with each lane showing the specific role, team, or individual responsible for certain tasks within that process.

4. Artefacts

Artefacts add extra context and details to your process model, helping others understand what’s happening behind each activity. They don’t change the process flow but make it clearer and more informative.

Text Annotation: Used to include short notes or clarifications in your diagram. It’s especially useful with Multi-Instance Tasks to show how many instances or repetitions occur. Any detailed information, however, should be documented in the accompanying procedure.

Data Objects: Represent the information or materials used and produced during a process. In simple terms, they show what’s needed to perform an activity and what’s created once it’s completed.

How to Create a BPMN-Compliant Process Model Step-by-Step?

Creating a BPMN process map doesn’t have to be complicated. With a structured approach and the right tools, you can quickly turn complex workflows into clear, visual process maps that everyone can understand and improve. Here are BPMN best practices in five simple steps:

Step 1: Understand the Core Building Blocks

Before diving in, take time to understand the fundamentals of BPMN. Learn the purpose of the four key components mentioned above.

This foundation helps you build models that are both clear and consistent, ensuring every process speaks the same visual language.

Step 2: Identify the Processes That Matter Most

Begin with the processes that have the highest impact on your business. These could be workflows that are time-consuming, prone to delays, or critical to customer experience, like order fulfillment, onboarding, or compliance approvals.

Mapping high-value processes first ensures your BPMN initiative delivers measurable results from day one.

Step 3: Use the Right BPMN Tool

The right software can make all the difference. Choose a BPM tool with in-built BPMN capability, like PRIME BPM, which lets you quickly create accurate, standardized process models without technical complexity.

With its drag-and-drop interface, you can create a process map seamlessly using BPMN symbols. It also has an AI-powered process mapping tool, which allows users to convert inconsistent flowcharts in the form of images or PDFs into an editable BPMN-compliant process map in minutes.

Step 4: Collaborate with Key Stakeholders

Engage the people who actually perform and manage the processes — team leads, subject matter experts, and department heads. Their input ensures that your BPMN diagrams accurately reflect real-world workflows. It also encourages ownership, making teams more invested in improving and following the modelled processes.

Step 5: Validate, Refine, and Continuously Improve

Once your process model is ready, review it with your stakeholders. Check if each step, decision, and interaction accurately represents reality.

Look for bottlenecks, redundancies, or unnecessary steps, and use the insights to simplify and streamline the workflow. Remember, process modelling is an ongoing practice of improvement.

Tips to Create Clear Process Models Using BPMN

A well-designed BPMN process model should be easy to read and instantly understandable. Here are a few quick tips to keep your process maps clear and compliant:

Keep the flow natural: Design your diagram to read from left to right and top to bottom, just like reading a page. Avoid crossing lines or adding unnecessary complexity.

Use pools and lanes wisely: Stick to one main pool for your process and make sure it starts and ends there. Clearly label lanes to show who’s responsible for each step. It keeps everyone on the same page.

Write short, sharp task names: Each task should say exactly what’s happening. Avoid adding extra words. Skip conjunctions (to, or, and) and avoid mentioning roles or systems.

For example: Write Approve Request or Send Invoice, not To Review and Approve Invoice.

Label your flows clearly: Give conditional and message flows meaningful names so others can instantly understand the logic. And remember, message flows shouldn’t connect items within the same pool.

Keep it neat: White space is your friend. A clean, uncluttered model helps people grasp the process at a glance.

3 Most Common BPMN Myths and Misconceptions Debunked

Let’s clear up some long-standing misconceptions:

Myth 1: “BPMN is too complex.”
Truth: BPMN is designed for clarity. Once you learn its handful of standard symbols, it’s far easier to interpret than freeform flowcharts.

Watch this video to learn what an expert says about the complexity of BPMN – Is BPMN Complicated?

Myth 2: “BPMN is outdated.”
Truth: A big no as it is far from it. BPMN 2.0 is the global standard and continues to evolve. It helps build the foundation to perform process automation and improvements.

Myth 3: “Only technical teams can use BPMN.”
Reality: BPMN is business-friendly by design. Anyone involved in process improvement, whether from HR, finance, or operations teams, can use it effectively with minimal training.

Is BPMN Suitable for Small Businesses or Only for Large Enterprises?

BPMN is just as powerful and valuable for small and growing businesses as it is for large organisations. In fact, small and growing businesses benefit the most from BPMN. Smaller teams often rely heavily on people’s individual knowledge, which makes consistency harder to maintain. BPMN process modelling brings structure early on, helping small businesses work smarter and scale with confidence.

In fact, for small teams, BPMN helps:

• Clarify roles and responsibilities.
• Standardize BPM workflows as the business scales.
• Reduce miscommunication and duplication of effort.
• Build a foundation for future automation or quality certifications.

You don’t need a large process management team to use BPMN. You only need the right guidance and the best BPM tools to document and refine your workflows systematically.

From Visuals to Value – Make BPMN Models Using PRIME BPM

With in-built BPMN capabilities, an intuitive drag-and-drop interface, and a low-code/no-code feature, PRIME BPM makes process modelling simpler than ever. You can create BPMN-compliant maps from scratch in just a few minutes. You don’t even require a technical background.

And with PRIME’s in-built AI Bot, HAPPI, and MapEZ, you can take your process documentation to the next level. These tools help streamline and enhance your process models by converting inconsistent flowcharts in the form of images, PDFs, or Excel sheets into editable BPMN-compliant process maps. They ensure the process maps you create are accurate, consistent, and ready for analysis, saving you countless hours of manual effort.

If you’re looking to strengthen your BPMN skills, consider the BPM Foundations and Process Mapping Course by PRIME BPM.

This hands-on BPMN course teaches you how to apply it effectively in real business scenarios. Plus, you’ll get free access to the PRIME BPM tool during training, giving you the chance to practice, model, and refine processes in a live environment.

Try this end-to-end BPM software free for 15 days to explore how you can create BPMN-compliant maps with ease.
